Type-MS/MSS

Type-MS/MSS

  • Adjustment of lifting and lowering speed : Both speed are adjustable by turning knob on control module.
  • Floating capability : By adding or reducing force directly onto the hung load, the load will move down or up respectivily. The range of floating is about 35cm up and down from stable position.

Point


  • Economical Model
  • Energy-saving design : Air consumption of AIr BALANCER is only 1/7 of that of AIR HOIST. (Comparing our existing model)
  • Clean design : No Lubraction is needed and produces no oil mist.
  • Quit design : With no air motor, AIR BALANCER produces very little noise in operation.

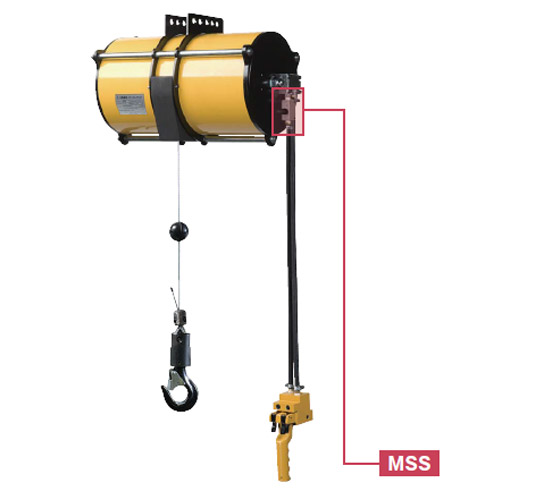

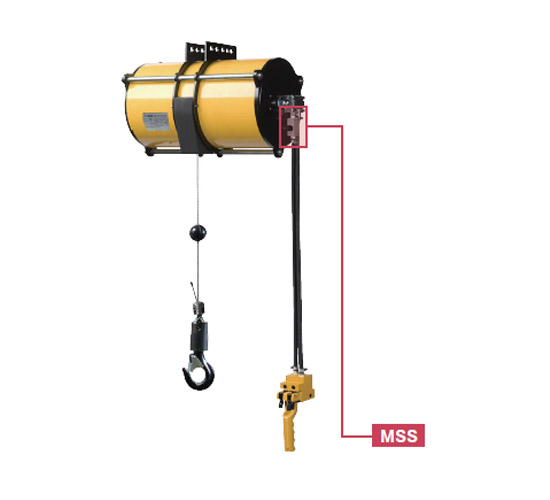

Control Module MSS

Control module Model Hose Operation Weight
Hoisting MS Straight hose×2 Pendant 2kg


Specification



model Air pressure (MPa) Max lifting capacity (kg) Stroke (m) Weight (kg) Cable dia (㎜) Air inlet
EHB-50
0.7 55 1.9 28 φ4.76 Rc 3/8
0.6 48
0.5 40
0.4 32
EHB-85
0.7 90 1.9 29
0.6 75
0.5 62
0.4 50
EHB-130
0.7 140 1.9 36
0.6 120
0.5 100
0.4 80
EHB-270
0.7 270 1.8 43 φ6
0.6 230
0.5 190
0.4 150
