Type-BC1

Type-BC1

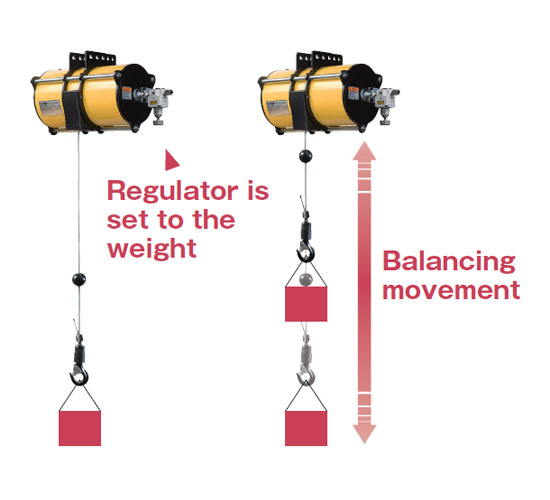

  • Single Balancing : The hung load will be balanced after regulator after the regulator is set to the weight. This module makes it easy for an operator to lift and lower a load.

Point

  • Single balance : Range of 0kg to max lifting capacity can be balanced.
  • Down stop : Hung load will go down slowly when the air supply is cut off.
  • Energy-saving design : Air consumption of AIR BALANCer is only 1/7 of that of AIR HOIST. (comparing our existing model)
  • Clean design : No lubrication is needed and produces no oil mist.
  • Quit design : With no air motor, AIR BALANCER produces very little noise in operation.


Control module Model Weight
Single balance module BC1 1kg


Specification



model Air pressure (MPa) Max lifting capacity (kg) Stroke (m) Weight (kg) Cable dia (㎜) Air inlet
EHB-50
0.7 55 1.9 28 φ4.76 Rc 1/4
0.6 48
0.5 40
0.4 32
EHB-85
0.7 90 1.9 29
0.6 75
0.5 62
0.4 50
EHB-130
0.7 140 1.9 36
0.6 120
0.5 100
0.4 80
