Type-MS-ATC

Type-MS-ATC

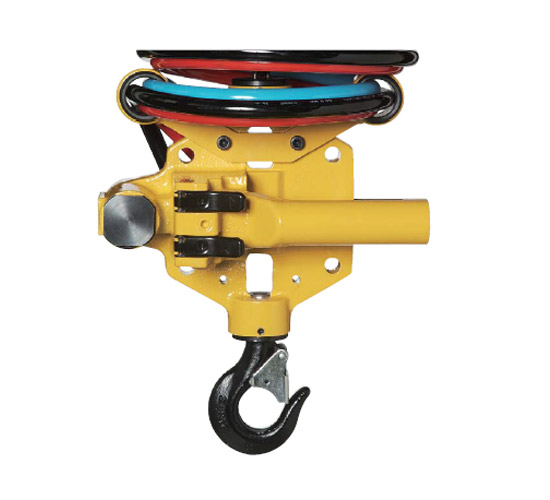

  • Much smoother Operation : Up and down button and handle are equipped on lower hook. Comparing with independent pendant control, load lift and lowers smoother and stably

Point

  • At-hand operation : This module is pendant type which can be operated at-hand and enables you to control hoisting and lowering with stable condition of the load.
  • Down stop : Added safety measure. Hung load will not fall even if the air supply is cut off or when hoses are broken.
  • Energy-saving design : Air consumption of AIR BALANCer is only 1/7 of that of AIR HOIST. (comparing our existing model)
  • Clean design : No lubrication is needed and produces no oil mist.
  • Quit design : With no air motor, AIR BALANCER produces very little noise in operation.


Control module Model Hose Operation Weight
Hoisting MS-ATC Coil hose×3 Pendant 1kg


Specification



model Air pressure (MPa) Max lifting capacity (kg) Stroke (m) Weight (kg) Cable dia (㎜) Air inlet
EHB-50
0.7 55 1.9 28 φ4.76 Rc 3/8
0.6 48
0.5 40
0.4 32
EHB-85
0.7 90 1.9 29
0.6 75
0.5 62
0.4 50
EHB-130
0.7 140 1.9 36
0.6 120
0.5 100
0.4 80

Product Range - Endo-Light Rails
