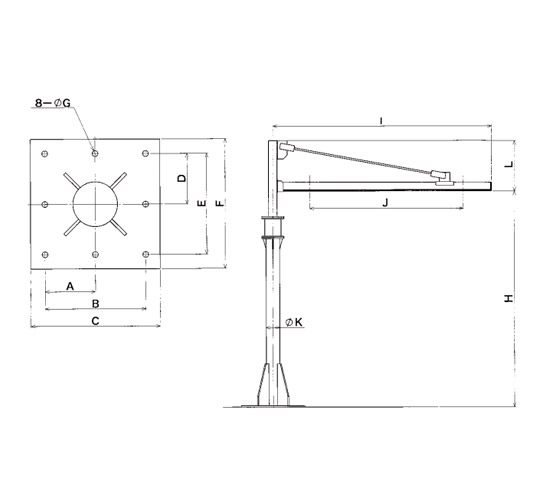

Model |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
H (mm) |
I (mm) |
J (mm) |
K (mm) |
L (mm) |
Weight (kg) |
EJS-2-20-300 |
230 |
460 |
500 |
230 |
460 |
500 |
φ20 |
2,000 |
2,095 |
1,140 |
φ216.8 |
700 |
300 |
EJS-2-30-265 |
230 |
460 |
500 |
230 |
460 |
500 |
φ20 |
3,000 |
2,095 |
1,315 |
φ216.8 |
700 |
265 |
EJS-3-20-170 |
230 |
460 |
500 |
230 |
460 |
500 |
φ20 |
2,000 |
3,095 |
2,235 |
φ216.8 |
900 |
170 |
EJS-3-30-150 |
230 |
460 |
500 |
230 |
460 |
500 |
φ20 |
3,000 |
3,095 |
2,235 |
φ216.8 |
900 |
150 |
EJB-2-20-400 |
280 |
560 |
600 |
280 |
560 |
600 |
φ20 |
2,000 |
2,110 |
1,140 |
φ267.4 |
700 |
400 |
EJB-2-30-400 |
280 |
560 |
600 |
280 |
560 |
600 |
φ20 |
3,000 |
2,110 |
1,140 |
φ267.4 |
700 |
400 |
EJB-3-30-250 |
280 |
560 |
600 |
280 |
560 |
600 |
φ20 |
3,000 |
3,110 |
2,235 |
φ267.4 |
900 |
250 |
EJB-4-30-120 |
280 |
560 |
600 |
280 |
560 |
600 |
φ20 |
3,000 |
4,110 |
3,235 |
φ267.4 |
900 |
120 |
