Type-ABC

Type-ABC

  • Auto Balance : With Full module, the AIR BALANCER can automatically adjust itself to the weight of the hung load. The load can then be lifted and lowered by hand without using the controller.
  • Adjustment of lifting and lowering speed : Both speeds are adjustable by turning the knob on control module.

Point


  • Auto Balance : Full auto module can recognize the weight of hung device from 0Kg to max lifting capacity so that the balancing can be controlled.
  • Down Stop : Added safety measure. Hung load will not fall even if the air supply is cut off or whhen hoses are broken.
  • Energy-saving design : Air Consumption of AIR BALANCER is only 1/7 of that of AIR HOIST. (camparing our existing model)
  • Clean design : No lubrication is needed and produces no oil mist.
  • Quit design : with no air motor, AIR BALANCER produces very little noise in operation


Control module Model Hose Operation Weight

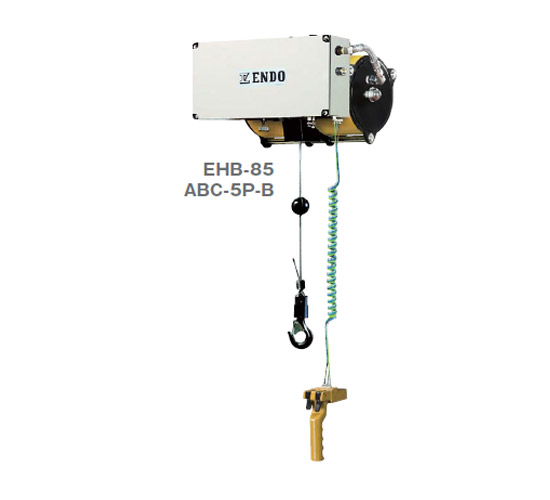

Full auto module ABC-5P-B Coil hose×3 Pendant 11kg

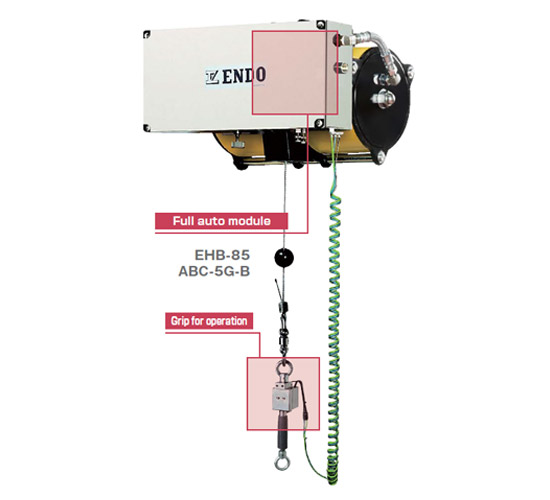

Full auto module ABC-5G-B Coil hose×3 Grip 11kg


Specification



model Air pressure (MPa) Max lifting capacity (kg) Stroke (m) Weight (kg) Cable dia (㎜) Air inlet
EHB-50
0.5 40 1.9 28 φ4.76 Rc 3/8
0.4 30
0.3 20
EHB-85
0.5 60 1.9 29
0.4 45
0.3 30
EHB-130
0.5 85 1.9 36
0.4 62.5
0.3 40
