Type-MS-A

Type-MS-A


Air Balancer is handling equipment powered by compressed air.

  • Adjustment of lifting and lowering speed : Both speed are adjustable by turning the knob on control module.
  • Floating capability : By adding or reducing force directly onto the hanged load, the load will move down or up respectively. The range of floating is about 35cm up and down from stable position.

Point

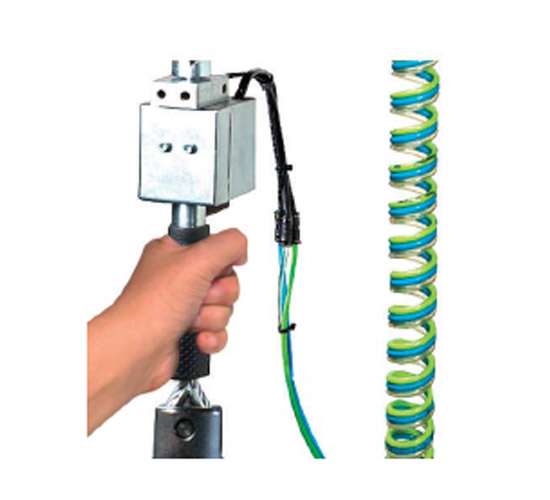

  • Grip Type controller : Grip type controller allows a more sensitive control of height of lift.
  • Down Stop : Added safety measure. Hung load will not fall even if the air aupply is cut off or when hoses are broken.
  • Energy-saving design : Air consumption of AIR BALANCER is only 1/7 of that of AIR HOIST. (Comparing our existing model)
  • Clean design : No Lubrication is needed and produces no oil mist.
  • Quit design : With no air motor, AIR BALANCER produces very little noise in operation.

Grip for operation
Pendant for operation
Grip for operation

Control module Model Hose Operation Weight
Hoisting MS-A Straight hose×3 Pendant 3.5kg
Hoisting MS-AG Coil hose×3 Grip 5kg


Specification



model Air pressure (MPa) Max lifting capacity (kg) Stroke (m) Weight (kg) Cable dia (㎜) Air inlet
EHB-50
0.7 55 1.9 28 φ4.76 Rc 3/8
0.6 48
0.5 40
0.4 32
EHB-85
0.7 90 1.9 29
0.6 75
0.5 62
0.4 50
EHB-130
0.7 140 1.9 36
0.6 120
0.5 100
0.4 80
EHB-270
0.7 270 1.8 43 φ6
0.6 230
0.5 190
0.4 150
